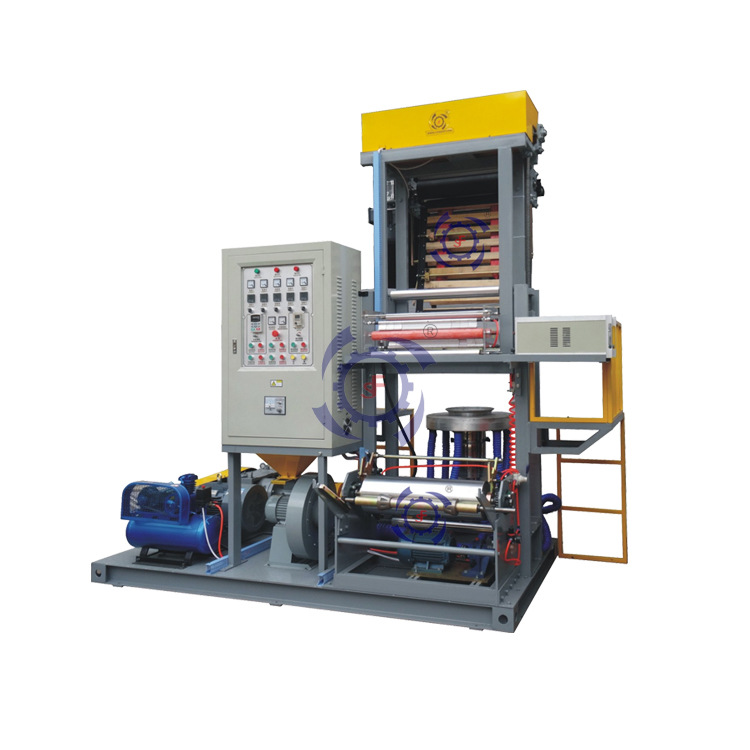

SJ-M Series Mini Film Blowing Machine
性能及特点(Performance and Characteristics)
本机利用HDPE或LDPE为原料,经加热、基础吹膜、拉伸、卷曲后即成圆筒薄膜,加工出的塑料薄膜广泛使用于超市方便袋、垃圾袋等各种塑料包装。
1. The machine take the HDPE or LDPE as raw material through heating,extrusion,blowing,stretch,winder and final be roll thin film.
2. The finished plastic thin film is widely used for supermarket bag,garbage bag,various plastic package bag.
可选配置 Optional Device
自动上料 Auto loader
气涨轴 A ir shaft
旋转模头装置 Rotary Die
主要技术参数
型号 | Model | SJ-M50/FM600 |
螺杆直径 | Diameter of screw | Φ50mm |
薄膜折径 | Reduced diameter of film(mm) | 100-600mm |
薄膜单面厚度 | Single-sided Thickness of film(mm) | 0.01-0.10mm |
挤出量 | Max Output(kg/h) | 35kg/h |
长径比 | L/D | 28:1 |
主机功率 | Power of main motor(kw) | 11KW |
牵引电机功率 | power of main traction motor(kw) | 0.75KW |
加热功率 | Heating Power ( kw) | 11KW |
外形尺寸 | Outline Dimension(LXWXH)(mm) | 2400X1500X2200mm |
机重 | Weight(T) | 1500kg |
